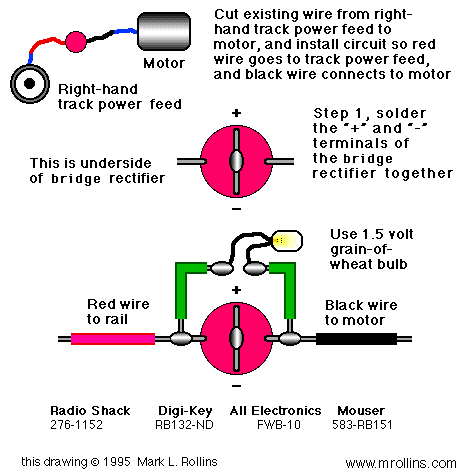

A single-rectifier, non-directional constant lighting circuit.

This project uses 1 rectifier and 3 differently-colored wires. Be sure to use lights rated at 1.5 volts, otherwise they will be much too dim.
